18m Portable mobile Articulating towable Boom Lift trailer boom lift factory

18m Portable mobile Articulating towable Boom Lift trailer boom lift factory
18m Portable mobile Articulating towable Boom Lift trailer boom lift factory
18m Portable mobile Articulating towable Boom Lift trailer boom lift factory
18m Portable mobile Articulating towable Boom Lift trailer boom lift factory
18m Portable mobile Articulating towable Boom Lift trailer boom lift factory
Model
THTCZB-18
Lift height
18m
Work height
20m
Load capacity
200KG
Weight
/
Platform size
900*700MM
Overall size
7100*2040*2200 mm
Power supply
DC/AC/Petrol/Diesel
Brand
Tuhe
Tuhe boom lift has a telescopic structure, which increases the working radius and saves storage space. The boom lift control system panel has two choices: Chinese and English. The main options of the panel include power selection, operation instructions, and control interface. Lift itself has automatic leveling system and tilt alarm, at the same time has a variety of safety measures, including emergency stop button, emergency descent system, explosion-proof valve, safety warning light.

Portable mobile Articulating towable Boom Lift trailer boom lift factory

20m-Towable-Electric-boom lift..jpg

Depending on the working height, the boom structure and working radius are also different.  The 8-12m boom structure is divided into large and small booms, and the maximum operating radius can reach 6 meters. The boom above 14 meters is divided into large, medium and small booms. The middle boom is a telescopic boom, which greatly increases the operating radius and the maximum operation  The radius can reach 12 meters.



The trailer knuckle boom has a compact structure and adopts new high-quality steel, high strength, light weight, direct access to AC power to start, automatic hydraulic support legs,  safe and simple operation.


This series of product lifts, also known as high-altitude operating vehicles, are widely used in installation, maintenance and climbing operations in municipalities, street lights,  communications, gardens, transportation, docks, airports and ports.

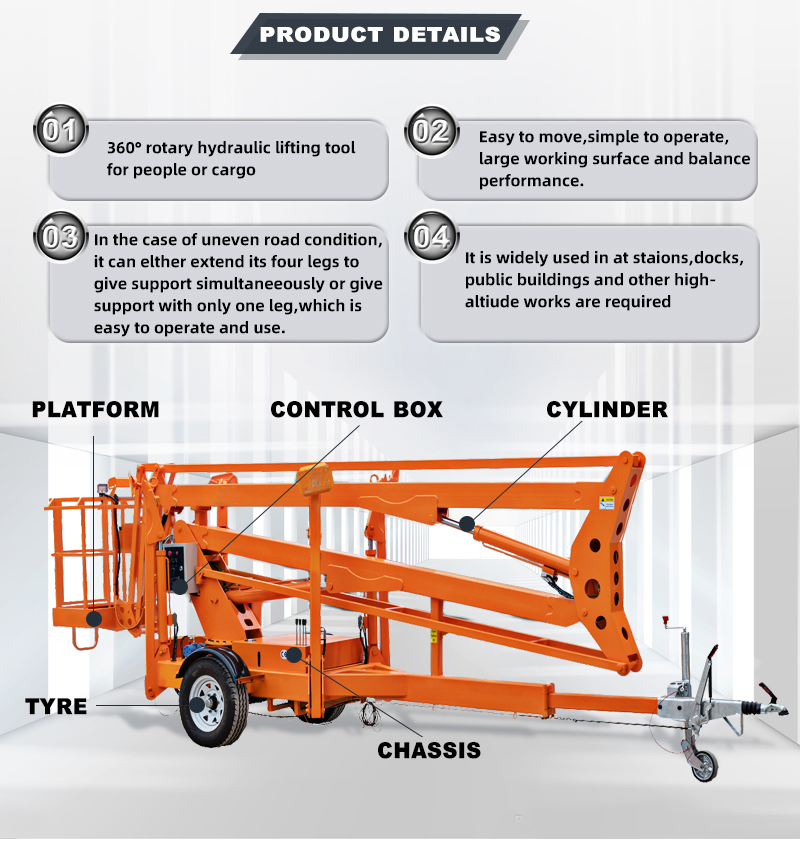

The high-altitude operation device includes a working arm, a lifting mechanism, a power system, a hydraulic system, an electrical system, and a control device. It has the advantages of smooth operation, stable work, automatic leveling, safety and reliability.


The trailer boom lift’s power is optional: DC, AC, AC & DC, diesel and diesel-electric dual use, etc.  Different powers are selected according to the actual needs of customers.

 The workbench can be raised and extended horizontally, with a large span, increasing the working area.  It can rotate 360°, the platform can be automatically leveled, and it is easy to cross obstacles to reach the working position. It is an ideal climbing equipment.
