Vertical hydraulic outdoor wheelchair lift canada

Vertical hydraulic outdoor wheelchair lift canada
Vertical hydraulic outdoor wheelchair lift canada
Vertical hydraulic outdoor wheelchair lift canada
Vertical hydraulic outdoor wheelchair lift canada
Vertical hydraulic outdoor wheelchair lift canada
Model
THWL
Lift height
1-10M
Load capacity
400KG
Platform size
1200x1000mm or custom
Power supply
AC110V 220v 380v or custom
Brand
Tuhe
Outdoor wheelchair lift canada is a convenient equipment to help the disabled and the old to go upstairs and downstairs. As a professional manufacturer, we can customize wheelchair lift according to your requirements, like lifting height and platform size. The hydraulic wheelchair lift is widely used in personal house, community, station and other public place.


Outdoor wheelchair lift canada introduction

Outdoor wheelchair lift canada is a convenient equipment to help the disabled and the old to go upstairs and downstairs. As a professional manufacturer, we can customize wheelchair lift according to your requirements, like lifting height and platform size. The hydraulic wheelchair lift is widely used in personal house, community, station and other public place.

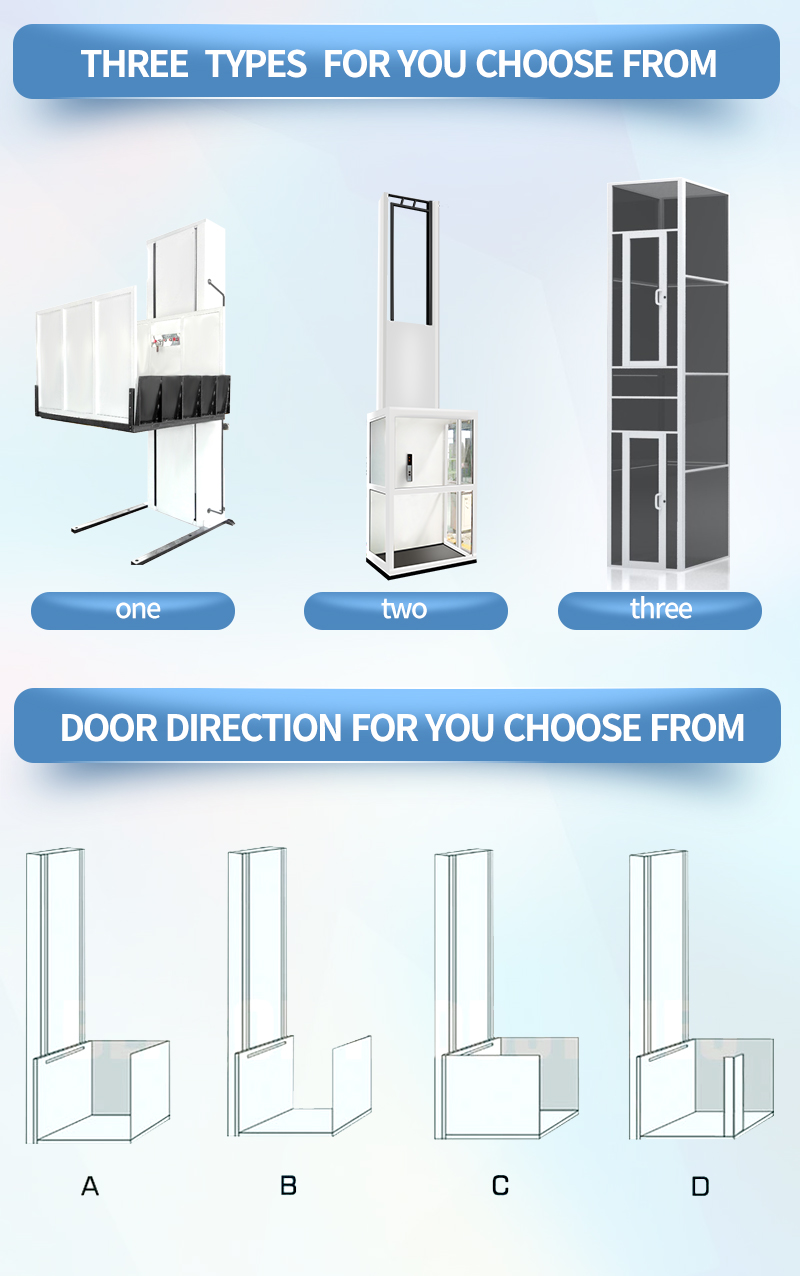

Outdoor wheelchair lift canada different models

There are three different models of hydraulic wheelchair lift, the standard model, the cabin model and the enclosure frame model. And, there are four different door directions, like 0°, 90°, 180° or full open platform.

You can choose your favourite model and we will manufacture the wheelchair lift according to your detailed requirements.


Outdoor wheelchair lift canada security

1. Fixed or automatic ramp to help wheelchairs get in and out easily.

2. Antiskid platform to keep the wheechair stable during lifting and lowering.

3. Safety interlock, if something bad happens, the platform will be locked immediately.

4. Bottom sensor, if there's any obstacle under the platform, the lift will stop once the obstacle touches the bottom.

5. Emergency stop, there's an emergency stop button.

6. Manual lowering valve, if powr failure, you can use this valve to lower the lift manually.


Outdoor wheelchair lift canada specialized parts

1. Aviation grade aluminum, to make sure the stability and durability of the whole lift.

2. Heavy duty chain and explosion-proof high-pressure tubing, to make sure the platform won't fall or oil leak.

3. Specialized mute pumping station, silence and powerful.


Outdoor wheelchair lift canada actual cases

As a professional manufacturer specializing in wheelchair lift, we will provide you a product with the best price and quality assurance. For more details about this product, welcome to contact us!
